Deda DCR Headset (integrated 1.5-45×45)

DCR Headset

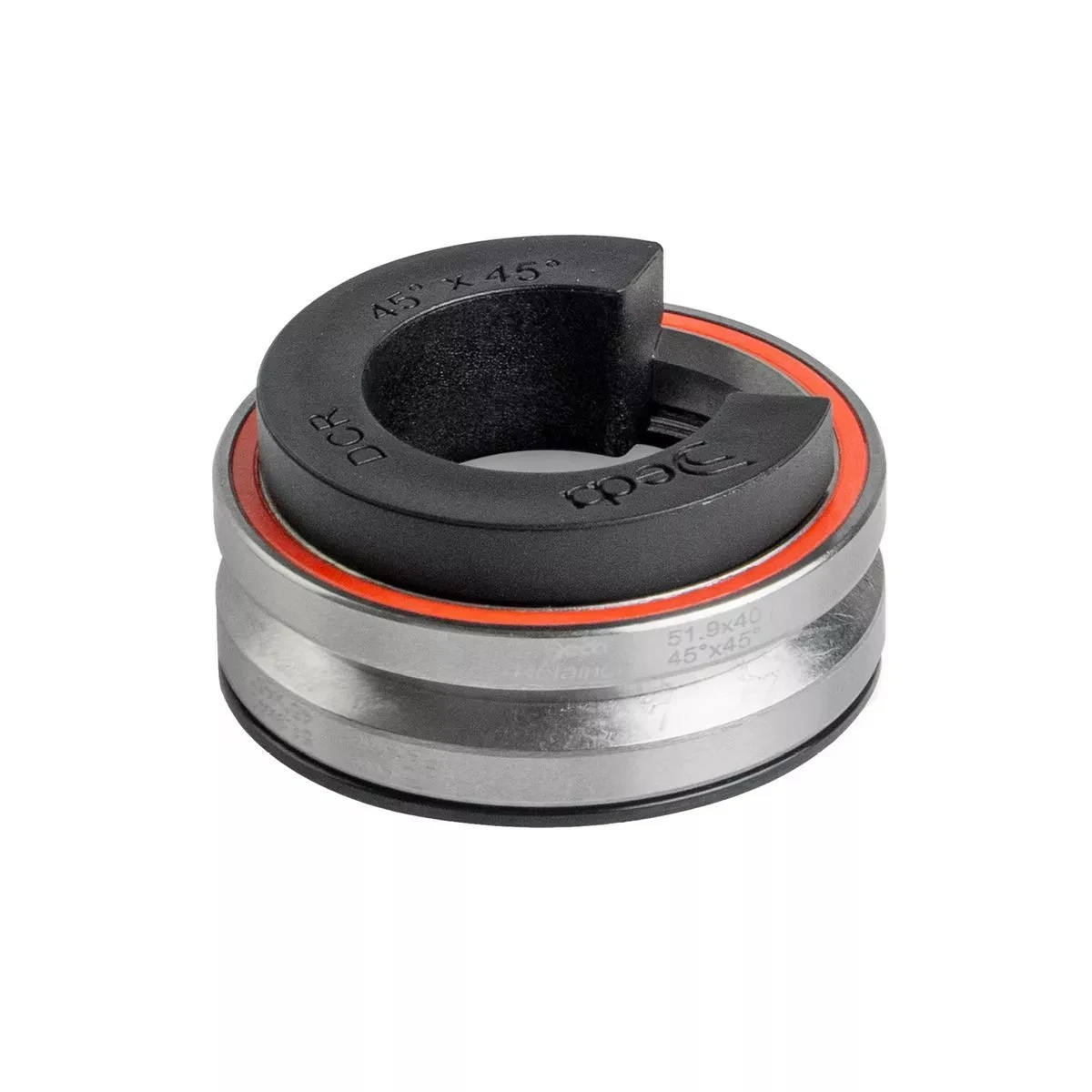

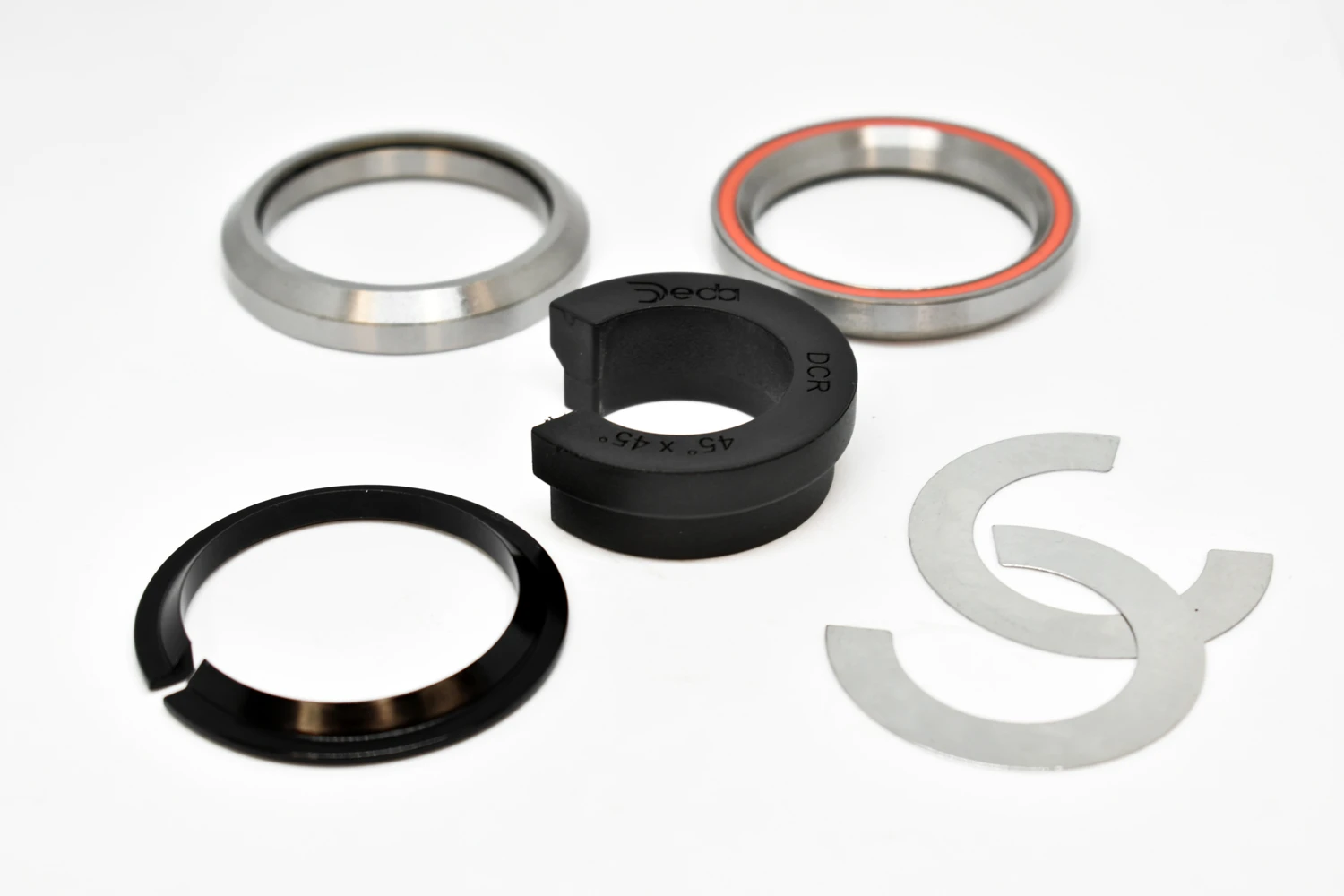

Integrated headset for DCR (Deda internal cable routing) system and compatible with Vinci, Alanera and Superbox stem. It allows the full integration of the cables through the headset bearing. The DCR system works with a standard tapered fork steerer (1-1/8” – 1.5”), but requires a 52mm (1.5”) upper headset bearing od. The special compression ring design leaves room for the cables to fit the gap in between the headset bearing and the fork. The DCR topcover for Alanera & Superbox (cod. HDALADCRTC56) and Vinci (HDVCNTC56) is not included in the kit, but available to purchase separately.

Tech Specs

    Headset model: integrated 1.5” – 1.5”
    Bearings type: angular contact bearing; chrome steel
    Bearings size: upper 51,9x40x8mm; lower 51,9x40x8mm
    Contact angle: Upper: 45°×45°
                          Lower: 45°×45° (cod. HDDCR) or 36°×45° (cod. HDDCR-36)
    Headtube:      ø 56.0mm
    Fork steerer:  tapered 1 1/8” (28.6mm) – 1.5” (38.10mm)
    Top cover:     ø 56mm
    Crown race:    ø 39.8mm aluminum
    Stack height:  9.6mm (8.8 + 0.8)
    Weight:        80g
    Note:          compatible with ø 56mm frame headtube designed for 1.5” bearings (upper & lower). The DCR topcover for Alanera, Vinci and Superbox is not included in the kit, but available to purchase separately.
